Gigabit Ethernet Media Converter 1310nm/1550nm 1 RJ45 port ethernet to fiber optic, a pair of 10/100 RJ45 to 1000M Bi-Directional Single-Mode
100M media converter 1310nm/1550nm 1 RJ45 port ethernet to fiber optic converter
Description:
The Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Feature:
MAC address table: 1K
UTP: RJ-45 10/100Mbps;
Fiber: SC 100Mbps
UTP: Cat. 5 UTP (the max distance up to 100m)
Full Duplex: IEEE802.3x
Half Duplex: Backpressure
LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
Ambient temperature:0 ~ 50℃
Storage temperature:-20 ~ +70℃
Humidity: 5% ~ 90%
Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
Type |
Fiber type |
connector |
Wavelength |
TX power |
Sensitivity |
Max. distance |
Link Budget |
HTB-3100A/B-25 |
SM |
SC |
1310/1550nm |
-14~-6dBm |
-32dBm |
25km |
18dBm |
HTB-3100A/B-40 |
SM |
SC |
1310/1550nm |
-5~0 dBm |
-35dBm |
40km |
30dBm |
HTB-3100A/B-60 |
SM |
SC |
1310/1550nm |
-8~-2 dBm |
-36dBm |
60km |
28dBm |
HTB-3100A/B-80 |
SM |
SC |
1310/1550nm |
-3~0 dBm |
-37dBm |
80km |
34dBm |

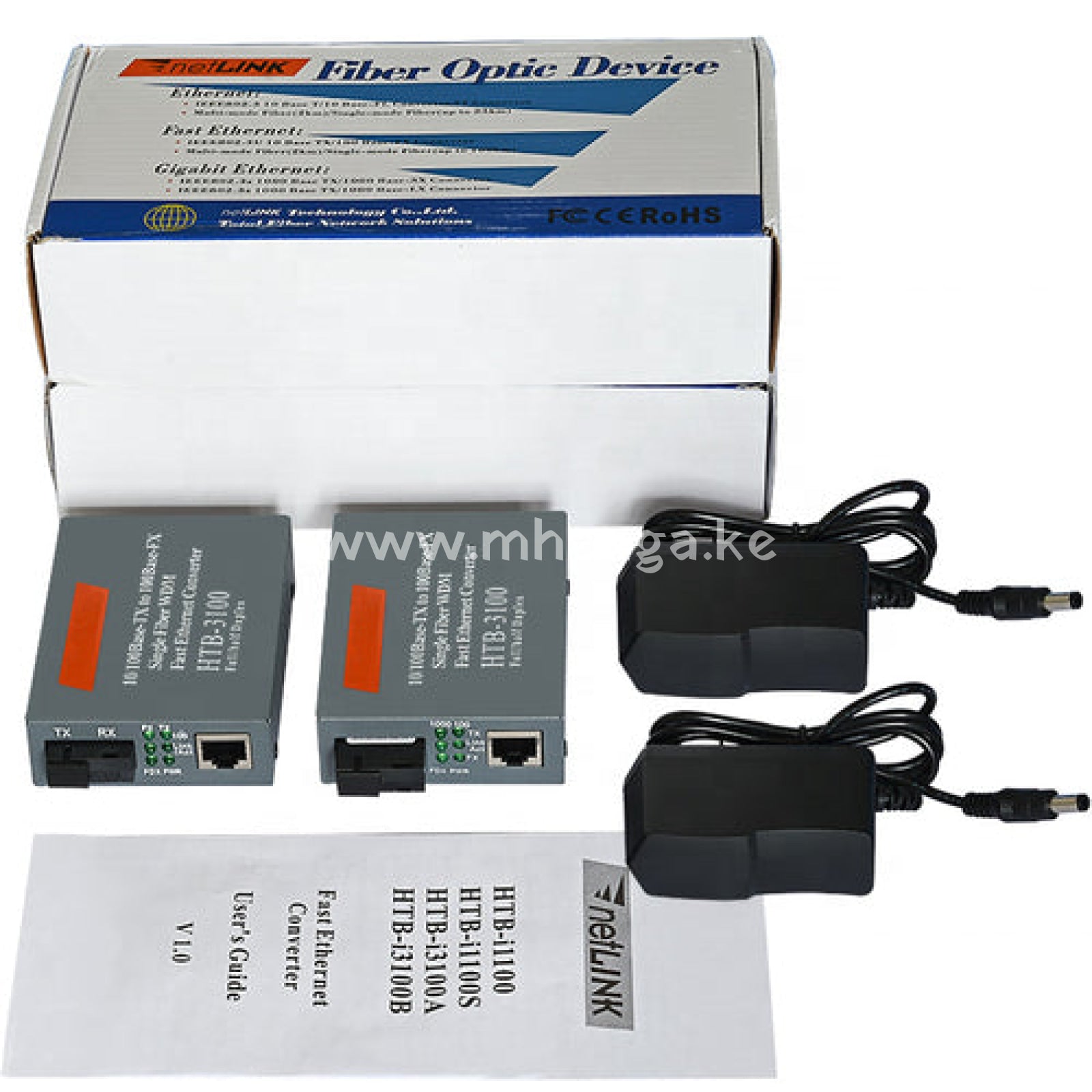

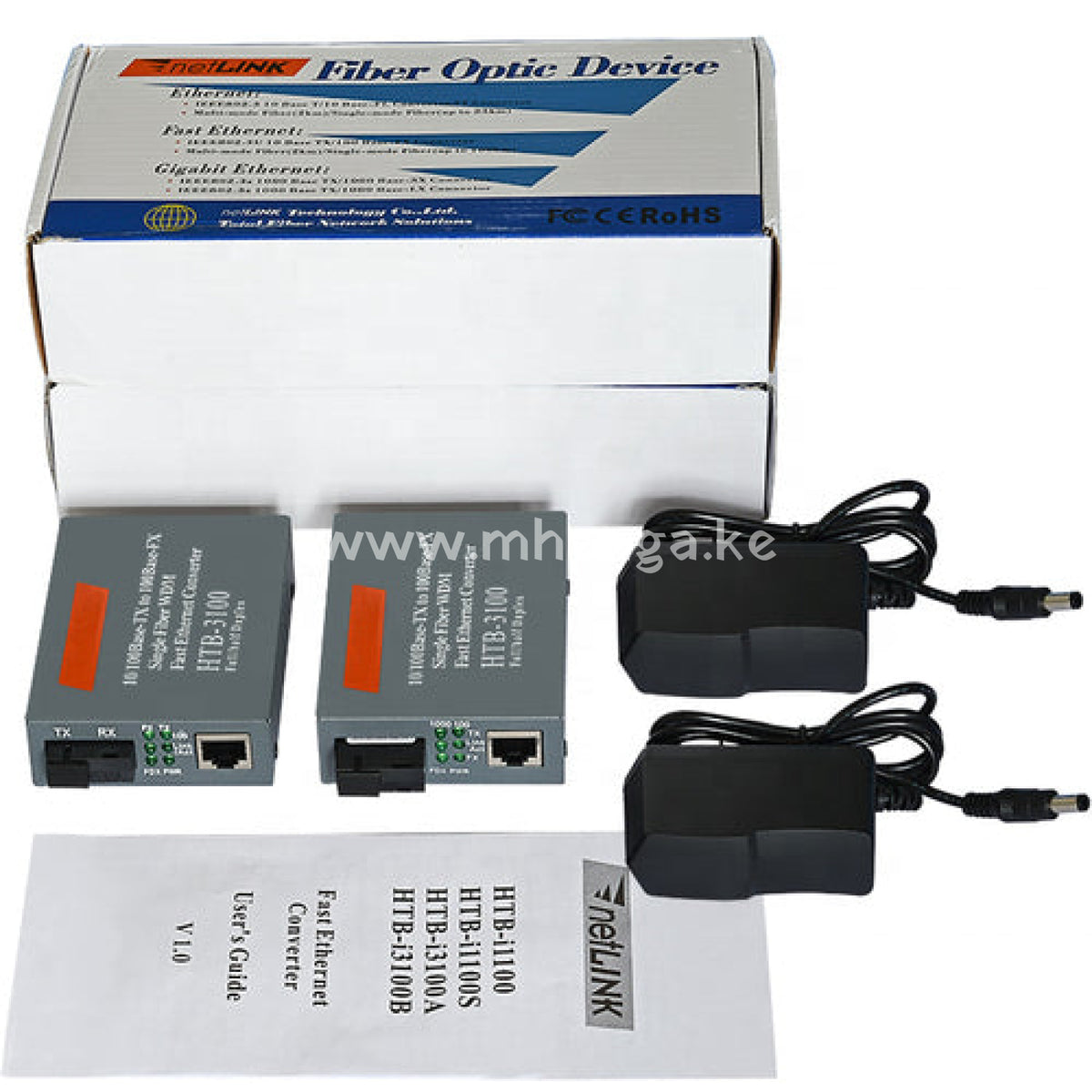

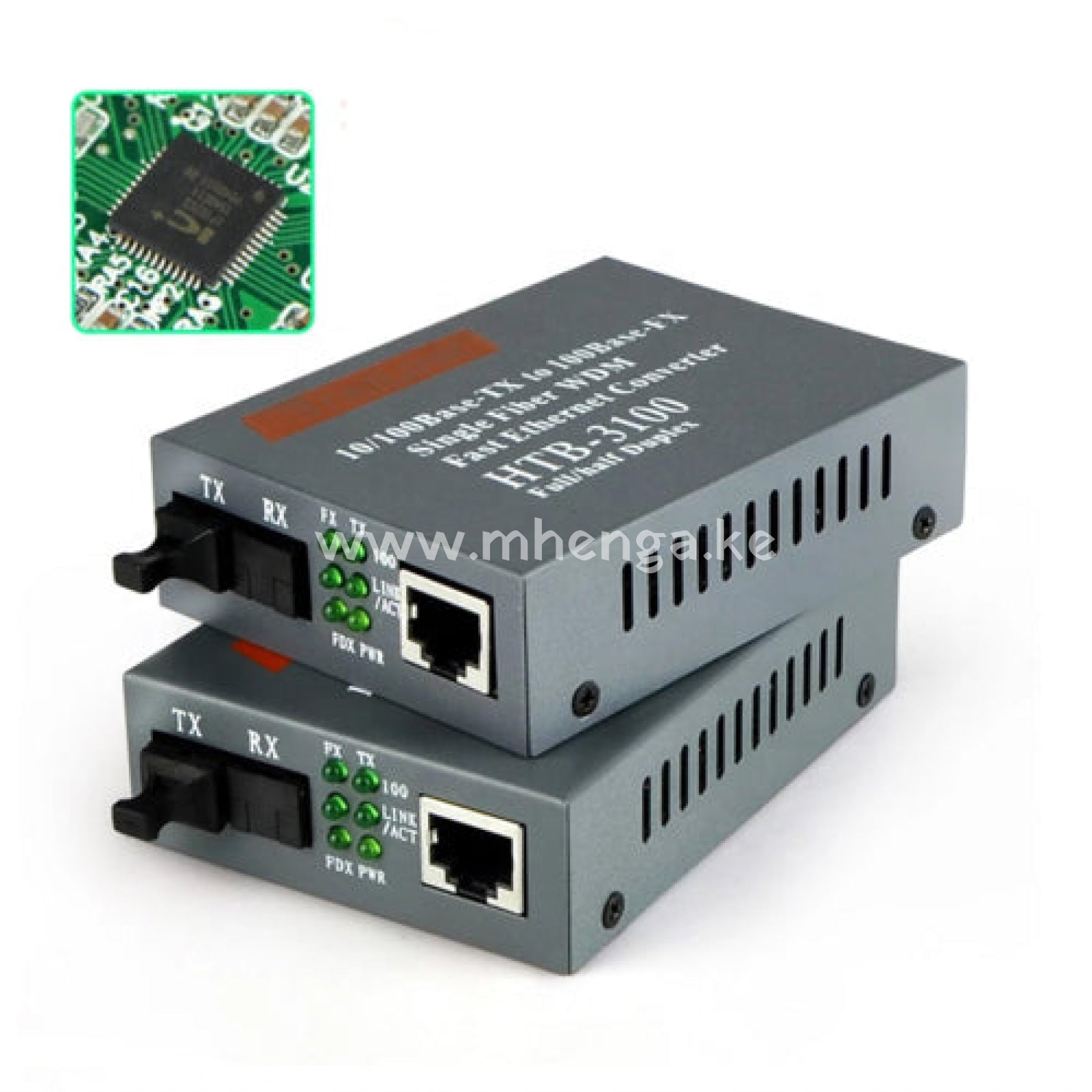

Product show:
