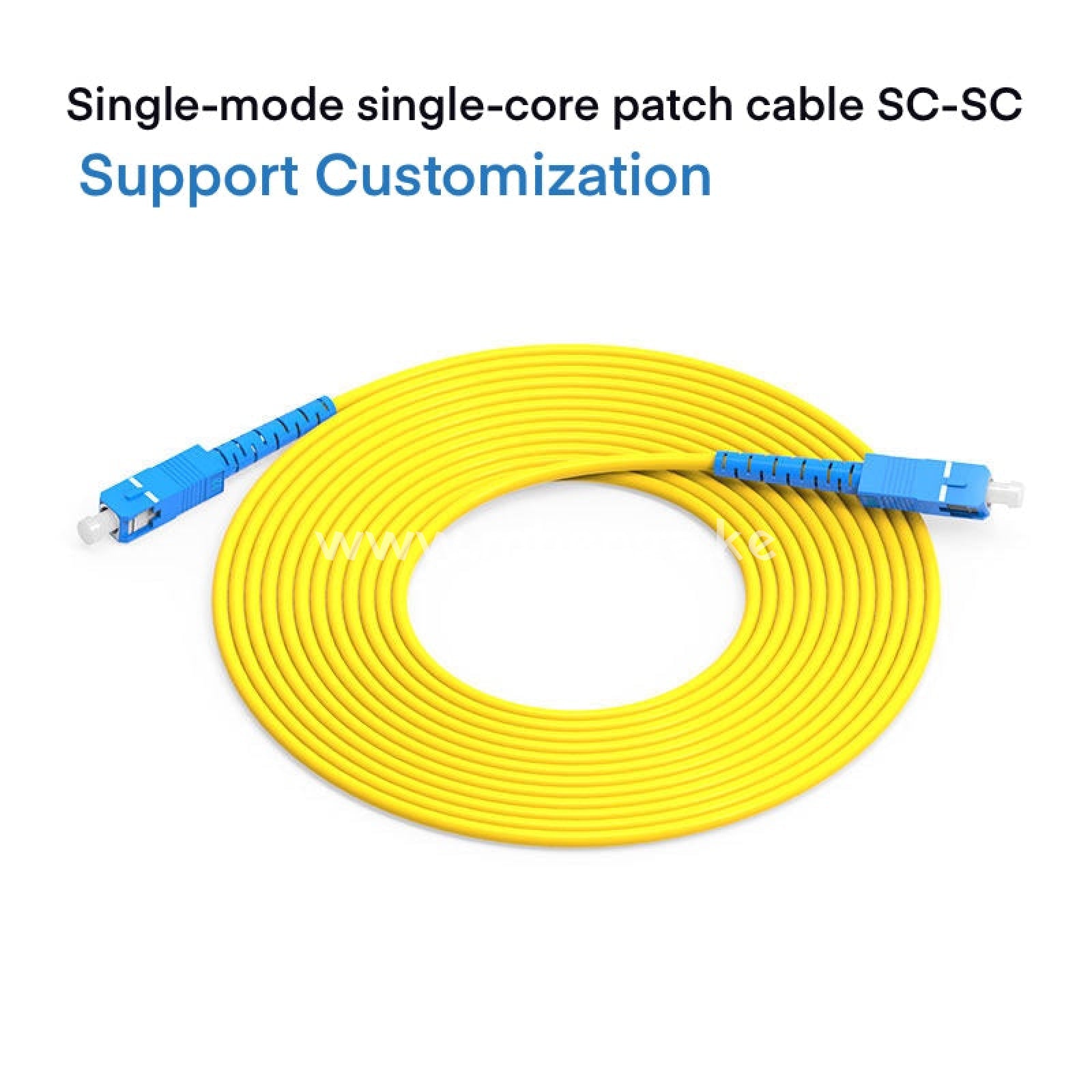

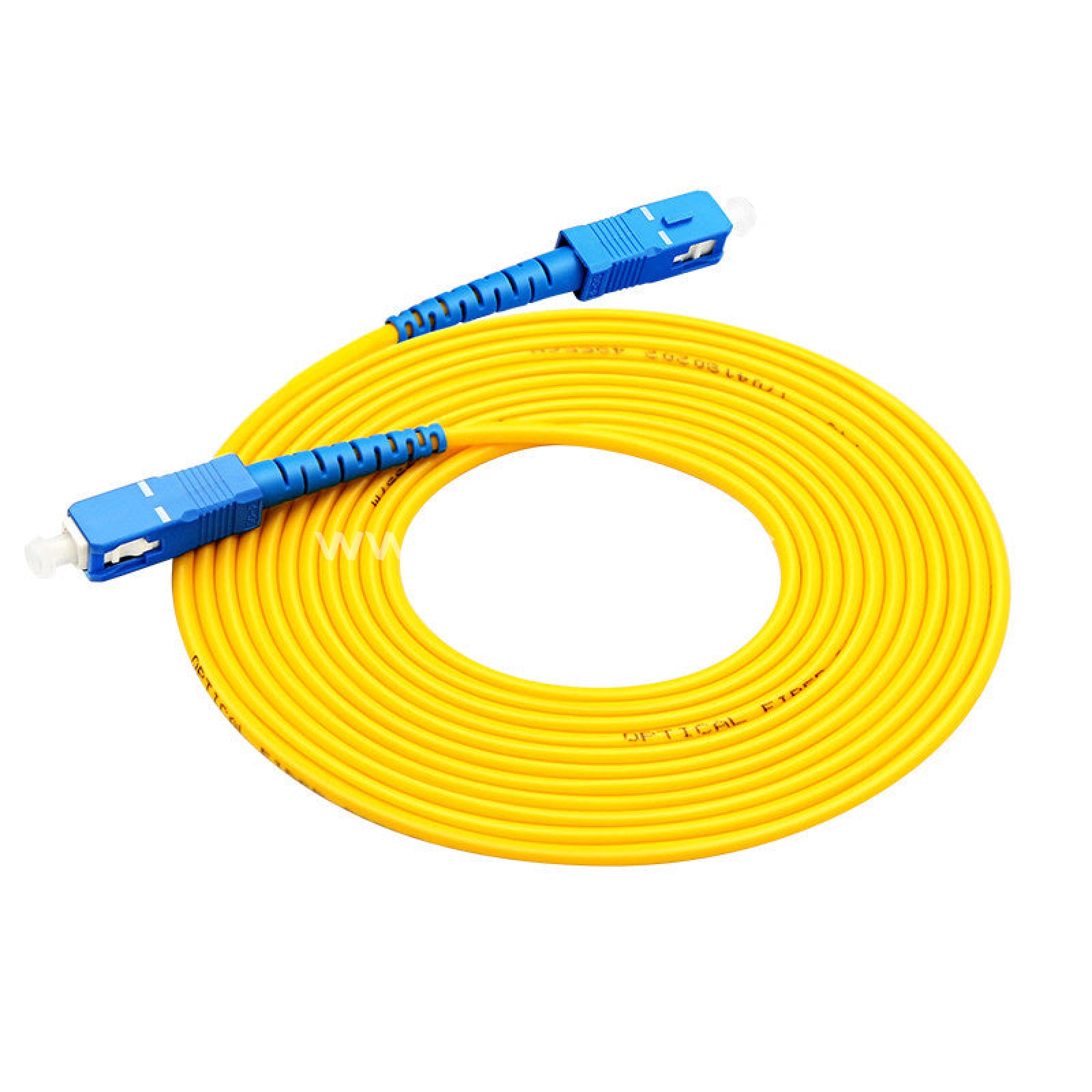

SC Patch Cord SC-SC Fiber Jumper,3m SC to SC Duplex Fiber Patch Cord Jumper Cable Single Mode Patch Cord With Low Insertion Loss (≤ 0.18 dB)
Product description
Features:
Low insertion loss (≤ 0.18 dB) Good performance on mutual inserting and repeatability. Large return loss (PC≥45db UDC≥50db APC≥60db) Good inter-plug performance Excellent temperature stability ( -40 - 80℃) Strong tensile performance, ensure long-time use.
Specification:
Type: SC-SC Fiber Jumper
Insertion loss: single mode ≤ 0.18 dB
Return loss: PC≥45db UDC≥50db APC≥60db
Number of insertions and withdrawals: 1000 or more
Tensile strength: 45KG
Working temperature: -40 - 80℃
Weight: Approx. 76g
Length: Approx. 10m / 11yd
Package list:
1 * Patch Cord
Note:
Please allow slight error due to manual measurement. Thanks for your kind understanding.
ProjectTest ConditionsSingle modeMultimodeOptical factorInsertion lossUPCSM: 1310nm/1550nm MM: 850nm/1300nm≤0.2dB≤0.3dBAPC1310nm/1550nm≤0.3dB
Return lossUPCSM: 1310nm/1550nm MM: 850nm/1300nm≥55dB≥35dBAPC1310nm/1550nm≥65dB
Mechanical factor (additional loss)Impact test1.8m, 8 times<0.1dB<0.1dBVibration test10-60Hz, 1mm Full amplitude<0.1dB<0.1dBInsertion life>100n<0.1dB<0.1dBTensile strength>100n<0.1dB<0.1dBEnvironmental factor (additional loss)High and low temperature cycle test-25℃ - +70℃, 2 cycles<0.2dB<0.2dBHigh temperature test+80℃, 2 Hours<0.2dB<0.2dBLow temperature test-40℃, 2 Hours<0.2dB<0.2dBWarm test+40℃, 90-95%RH, 2Hours<0.2dB<0.2dB
