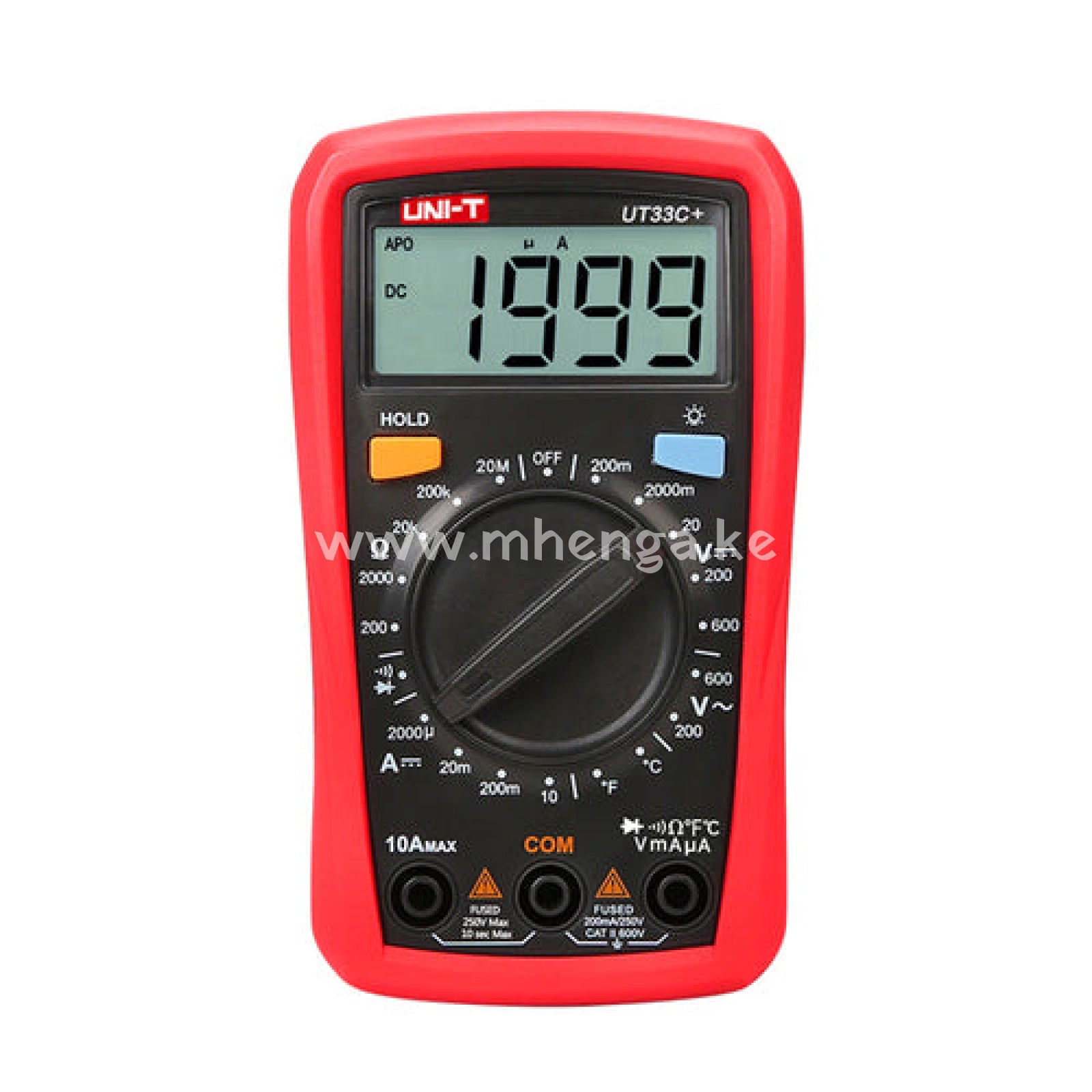

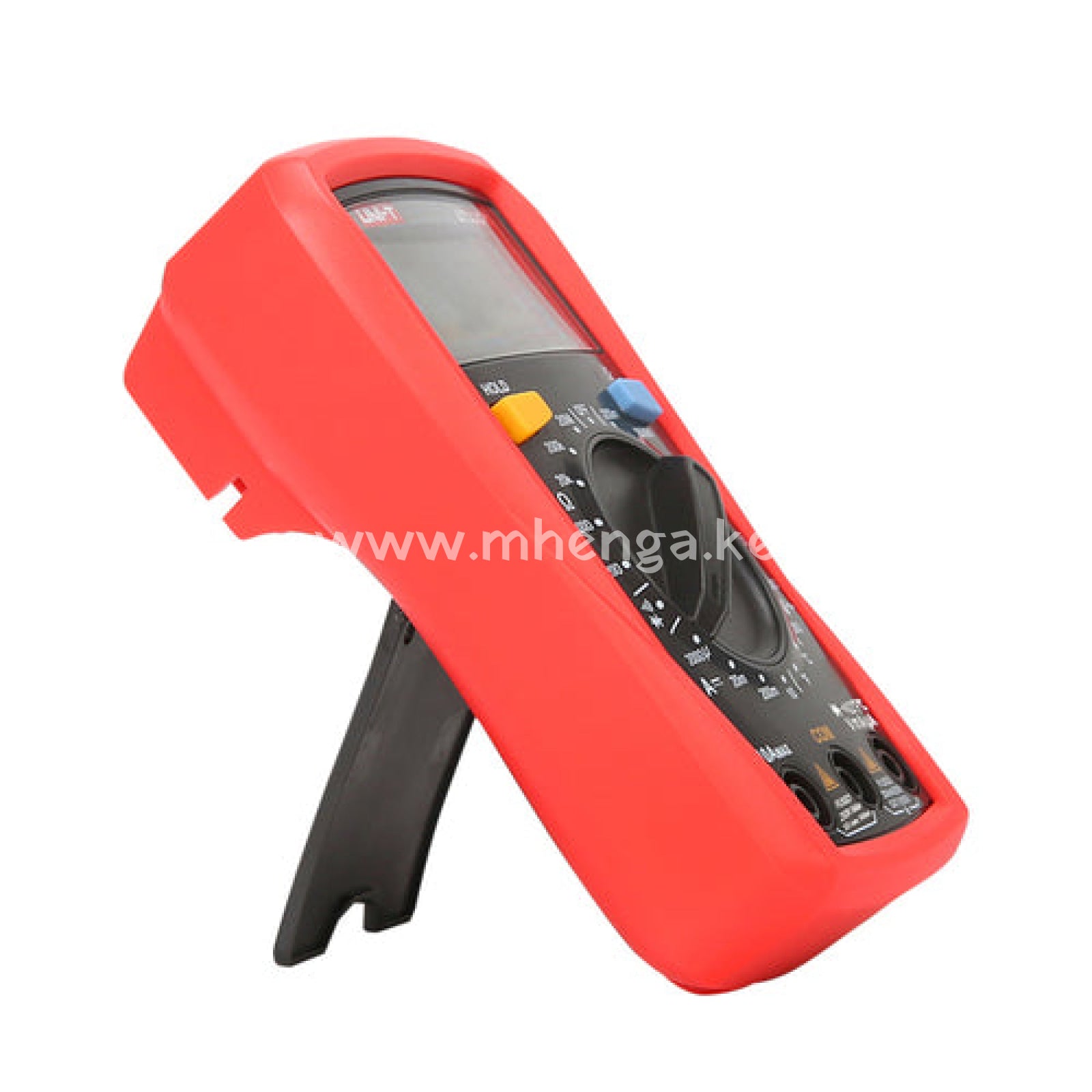

The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment.
Features:
1. Clear LCD display
2. Comfortable protective cover, with test lead hanging groove
3. 2 meters drop test, precision protection
4. Loud buzzer sound; Ergonomic design
3. 2 meters drop test, precision protection
4. Loud buzzer sound; Ergonomic design
|
Specifications
|
Range
|
UT33C+
|
|
DC voltage (V)
|
200mV/2V/20V/200V/600V
|
±(0.5%＋2)
|
|
AC voltage (V)
|
200V/600V
|
±(1.2%+3)
|
|
DC current (A)
|
2000μA/20mA/200mA/10A
|
±(1%+2)
|
|
Resistance (Ω)
|
200Ω/2kΩ/20kΩ
|
±(0.8%+2)
|
|
/200kΩ/20MΩ
|
||
|
Temperature
|
-40℃~1000℃
|
±(1%+4)
|
|
-40℉~1832℉
|
±(1.5%+5)
|
|
|
Features
|
||
|
Display count
|
|
2000
|
|
Auto power off/Auto backlight off
|
|
√
|
|
Diode test/Continuity buzzer
|
|
√
|
|
2m drop test/ Test probe holder
|
|
√
|
|
Range selection
|
|
Manual
|
|
General Characteristics
|
||
|
Power
|
1.5V battery (R03) x 2
|
|
|
Display
|
66mm x 51mm
|
|
|
Product net weight
|
Red and grey
|
|
|
Product color
|
206g (batteries included)
|
|
|
Product size
|
134mm x 77mm x 47mm
|
|
|
Standard accessories
|
Batteries, test leads, K-type thermocouple
|
|
|
Standard individual packing
|
Gift box, English manual
|
|
